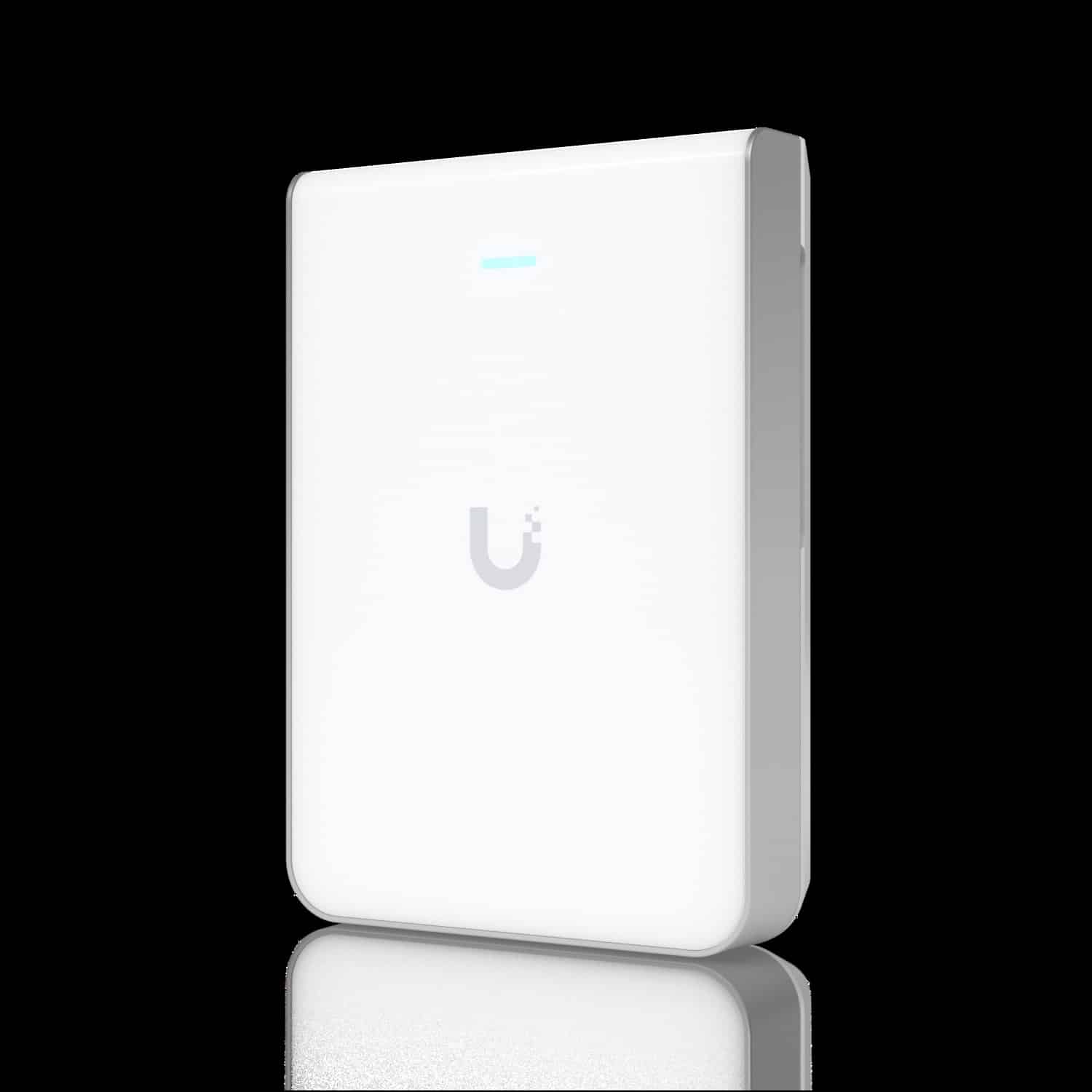

Wall-mounted WiFi 6 access point with integrated PoE switch.
115 m² (1,250 ft²) coverage
¨über 300 angeschlossener Geräte
WiFi6 (4×4 MIMO)
Power supply via PoE*
*PoE+ input required for single-port PoE output.
Technical specifications
Mechanical
Maße
139.66 x 96 x 31.19 mm (5.5 x 3.78 x 1.28″)
Weight
460 g (1.01 pounds)
Waste materials
Plastic, aluminium
Mounting material
Aluminium
Hardware
Network interface
(1) Data input: 1GbE RJ45 port
(4) Data output: 1GbE RJ45 ports
Management interface
Ethernet
-Bluetooth
PoE interface
(1) PoE input (PoE output not used)
(1) PoE output (PoE+ switch required)
Power Method
PoE
Power supply
UniFi PoE switch
48 V, 0.5 A PoE adapter (optional)
Max. Energy consumption
Without PoE output: 13.5 W
Maximum PoE wattage per port according to PSE
15.4 W**Requires a PoE+ switch
PoE mode voltage range
44–57 V DC
Max. Transmission power
2.4 GHz
5 GHz
