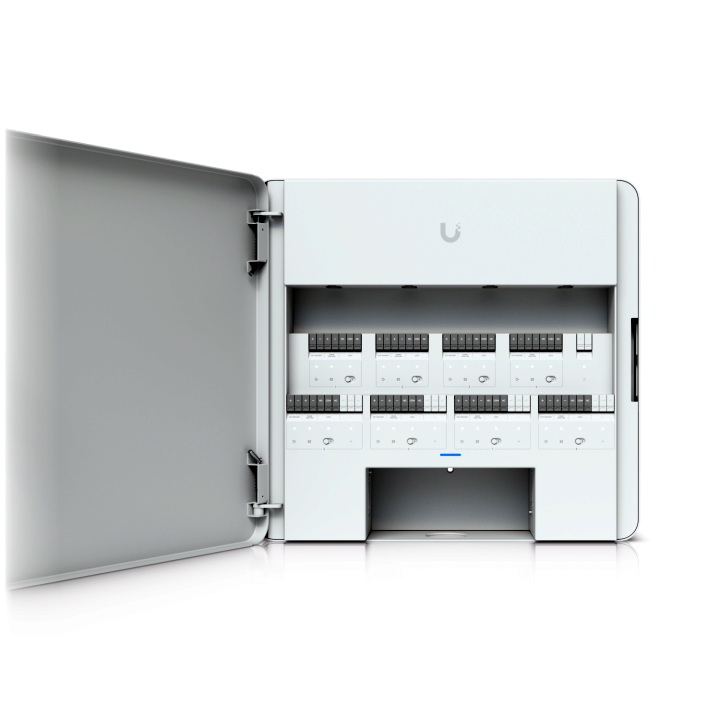

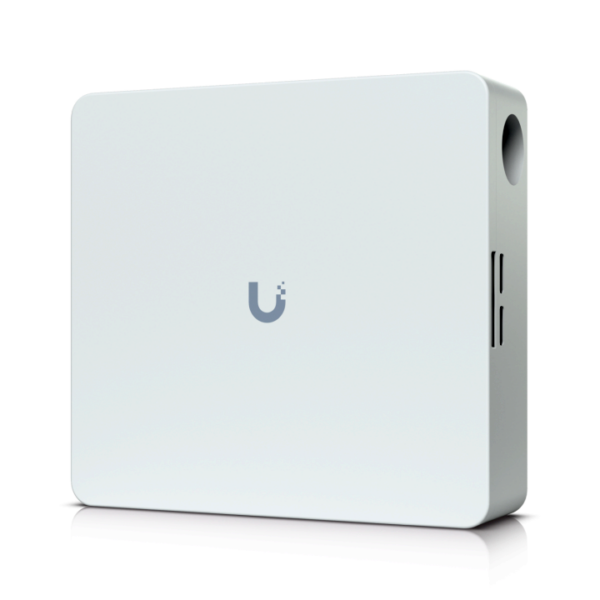

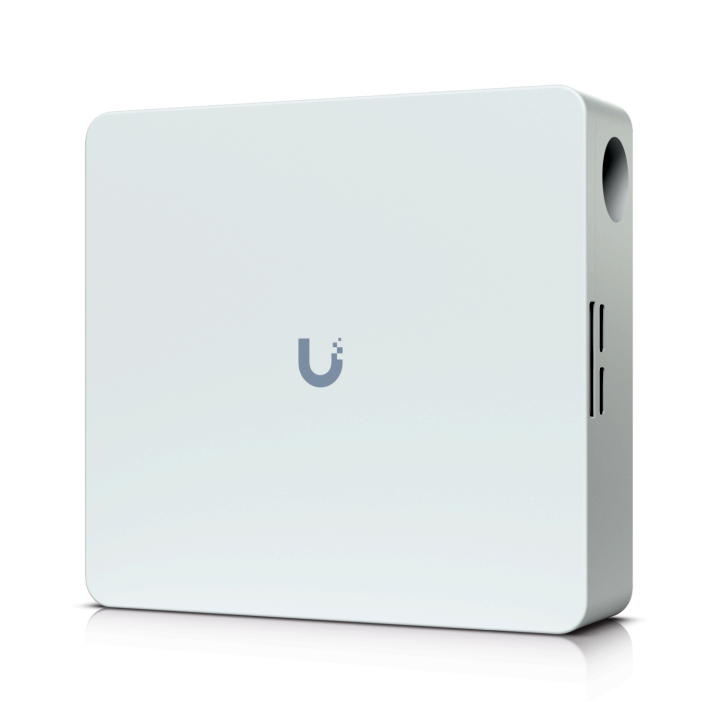

Enterprise-grade access hub with entry and exit control to eight doors and battery backup support.
(8) Lock terminals (12V or Dry)
(8+8) Inputs for request-to-exit devices and door position sensors
(8) PoE ports for Access Readers
(4) AUX terminals for chimes, sirens, or door openers
(1) Battery backup input (32–48V)
Technical Specifications
Mechanical
Dimensions
379 x 355 x 105 mm (15 x 14 x 4.1")
Weight
Device: 9.1 kg (20 lb)
Mount: 624 g (1.4 lb)
Enclosure material
SGCC housing with PC cover
Mounting material
SGCC wall mount plate
Hardware
Networking interface
(10) 10/100/1000 Base-T
Power method
Universal input, 100-240V AC,~4.4A Max, 50/60Hz
32–48V DC Lead Acid Battery
Power supply
AC/DC, internal
Max. power consumption
240W
PoE interface
(8) PoE (Pins 1, 2+; 3, 6-)
Voltage range PoE mode
44–57V DC
Total available PoE
60W
Max. PoE wattage per port
15.4W
Button
(1) Factory-reset
LEDs
