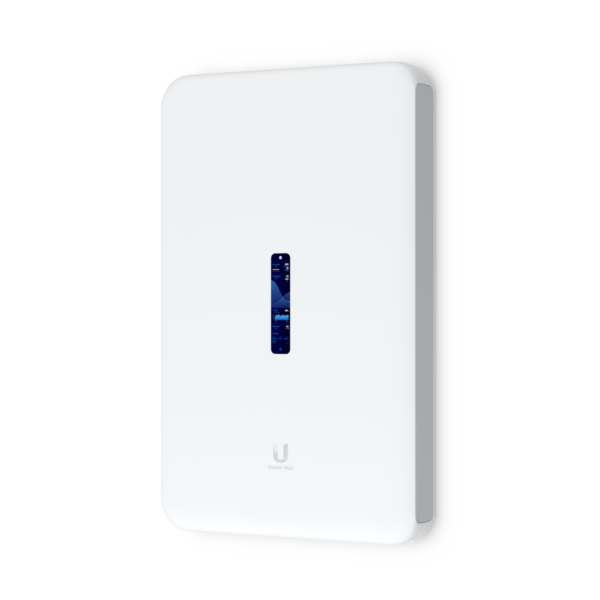

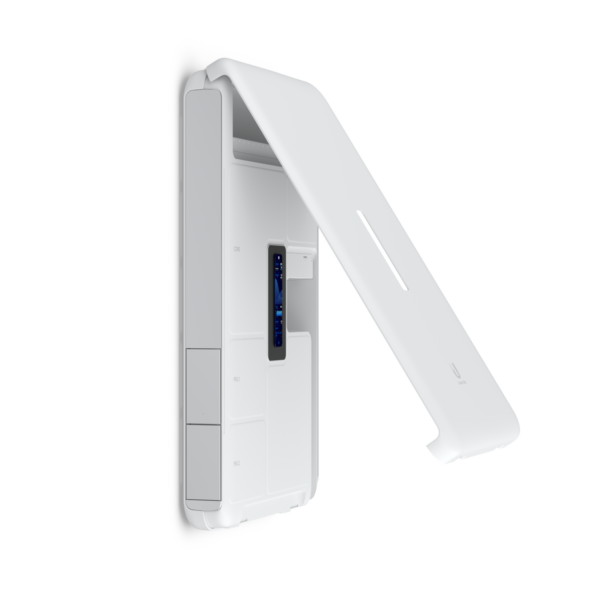

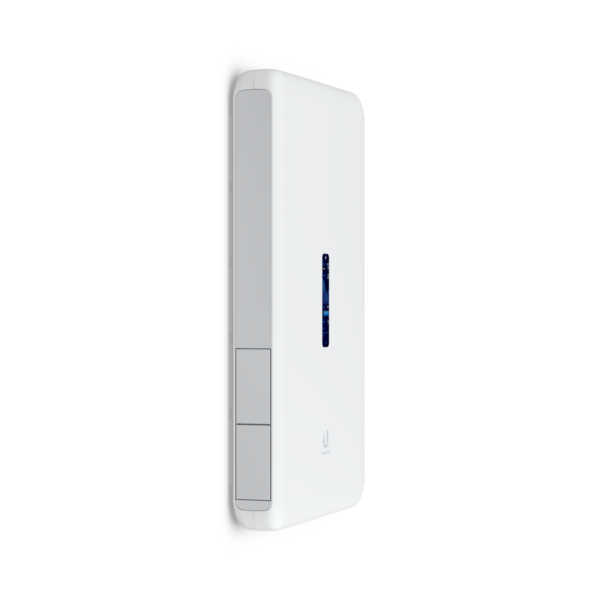

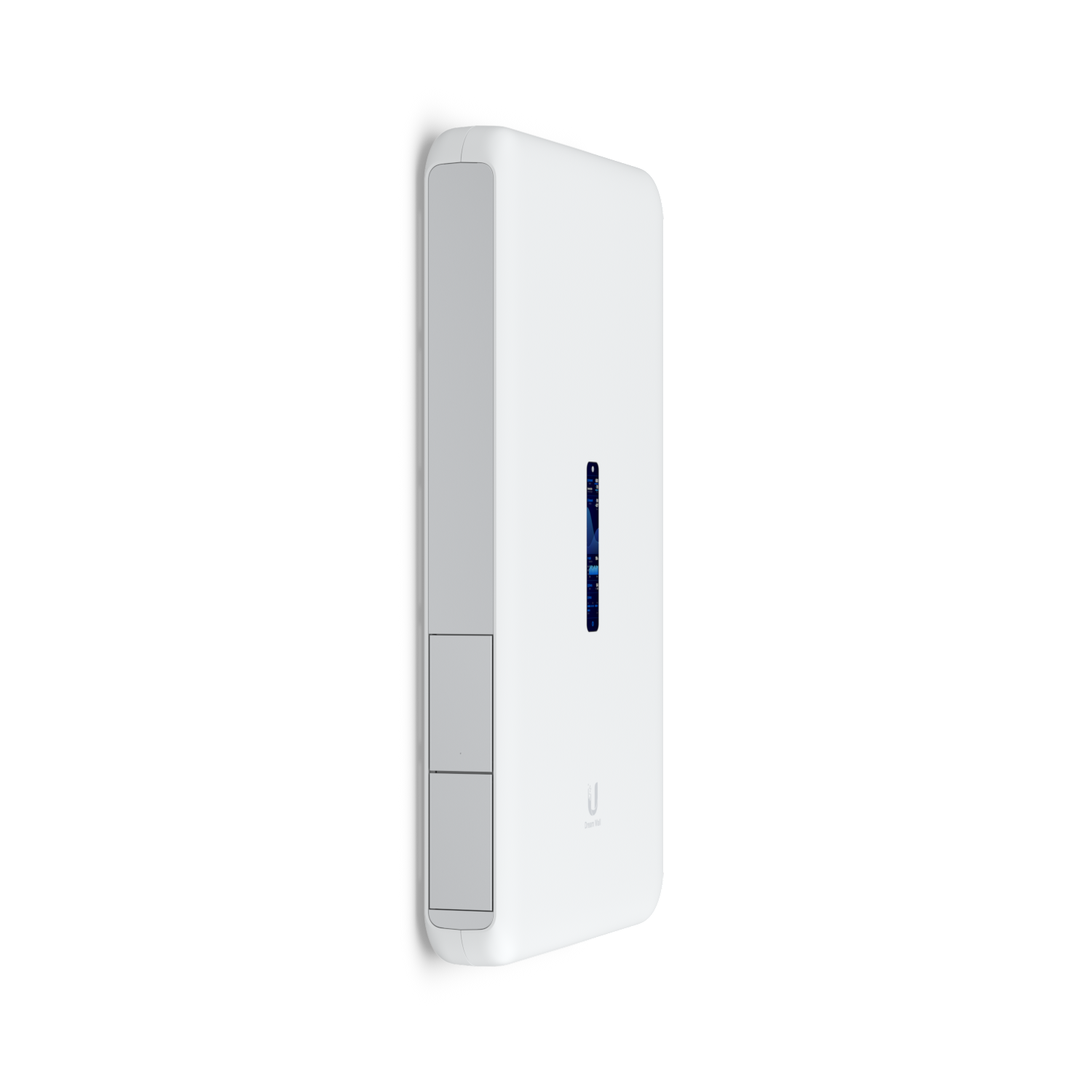

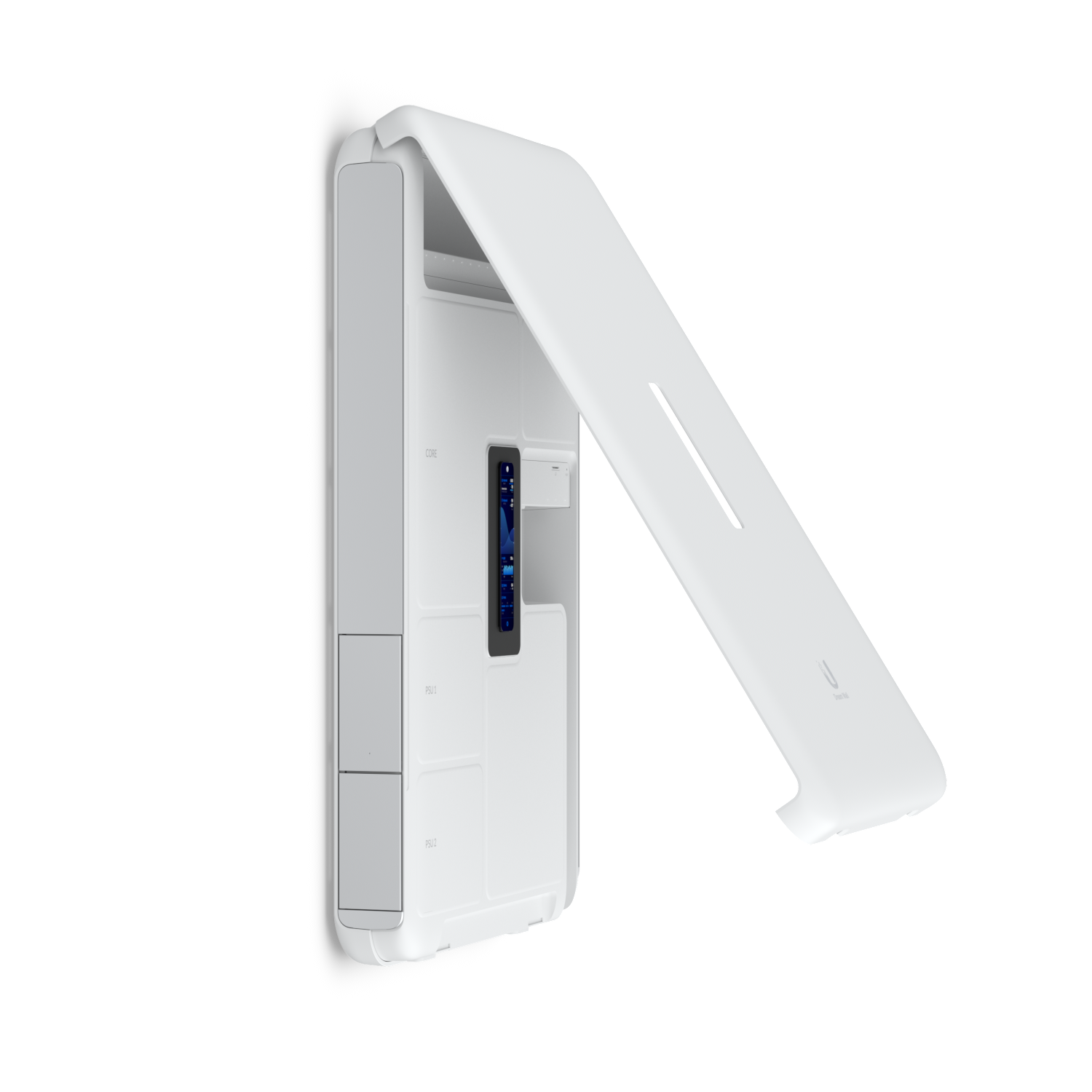

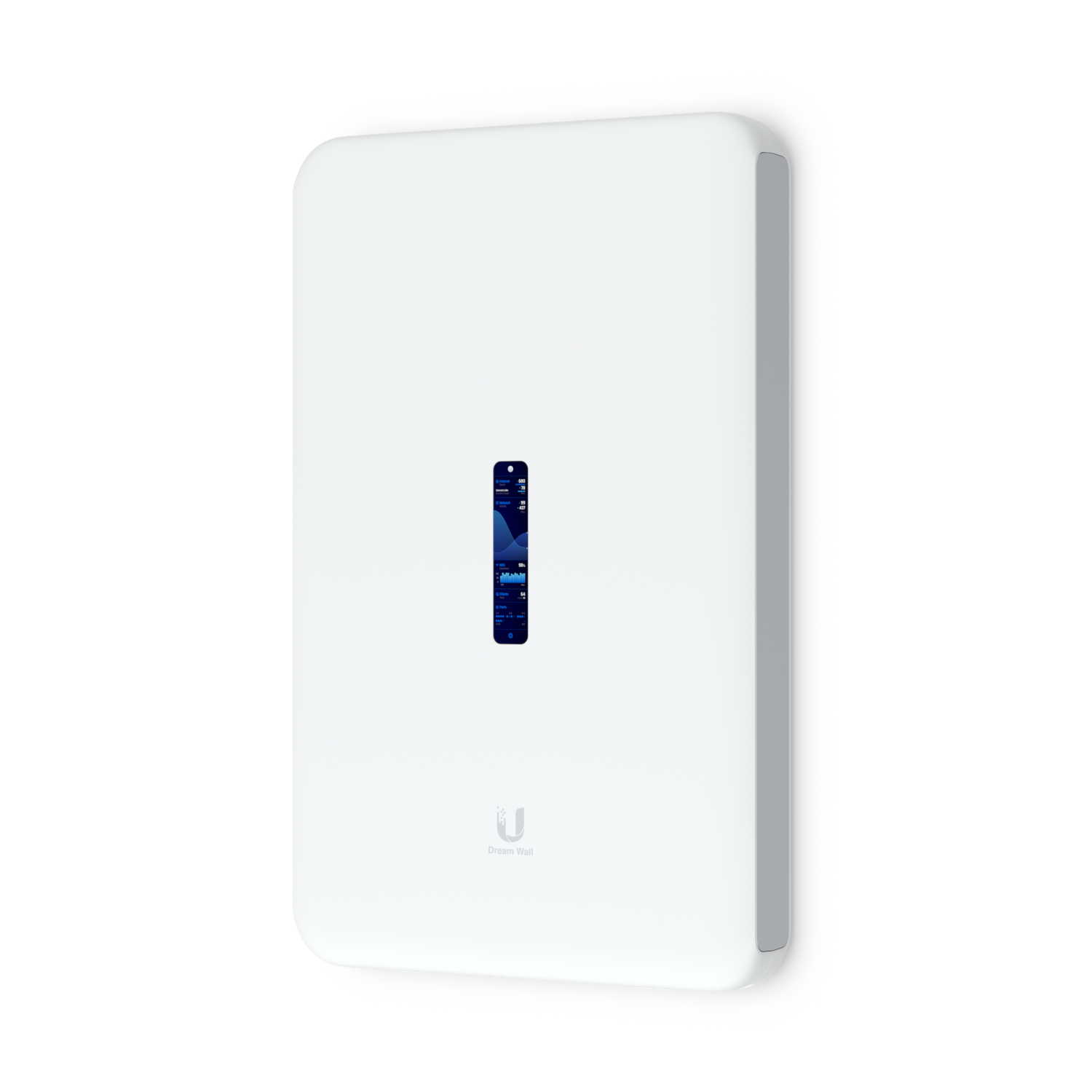

Wall-mountable UniFi Gateway Console with a built-in high-speed access point, network video recorder, and PoE switch.
Integrated Enterprise WiFi6 (4×4 MIMO)
Full UniFi OS and UniFi application support
3.5+ Gbps routing
(1) 10G SFP+, (17) GbE RJ45 LAN ports including (4) PoE++, (4) PoE+, and (4) PoE ports
(1) 10G SFP+, (1) 2.5GbE RJ45 WAN ports
4.7″ touchscreen for management
Integrated 128 GB SSD & pre-installed 512 GB microSD card
Technical Specifications
Mechanical
Dimensions
549 x 342 x 62 mm (21.6 x 13.5 x 2.4″)
Weight
8.6 kg (19 lb)
Enclosure materials
Polycarbonate, galvanized steel, aluminum alloy
Mount material
Stainless steel
Hardware
Processor
Quad-core ARMยฎ Cortexยฎ-A57 at 1.7 GHz
System memory
4 GB DDR4
On-board storage
16 GB eMMC
Integrated 128 GB SSD
Pre-installed 512 GB microSD card
Expansion slot
Micro SD memory card**Requires a memory card with at least 128 GB of storage.
Management interface
Eth
