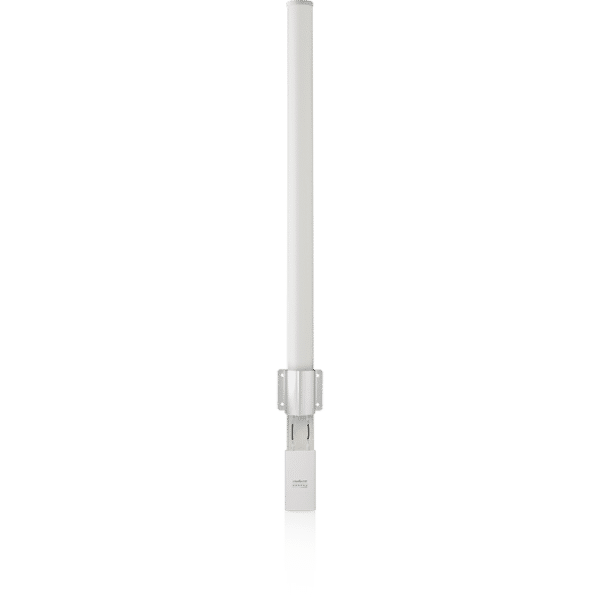

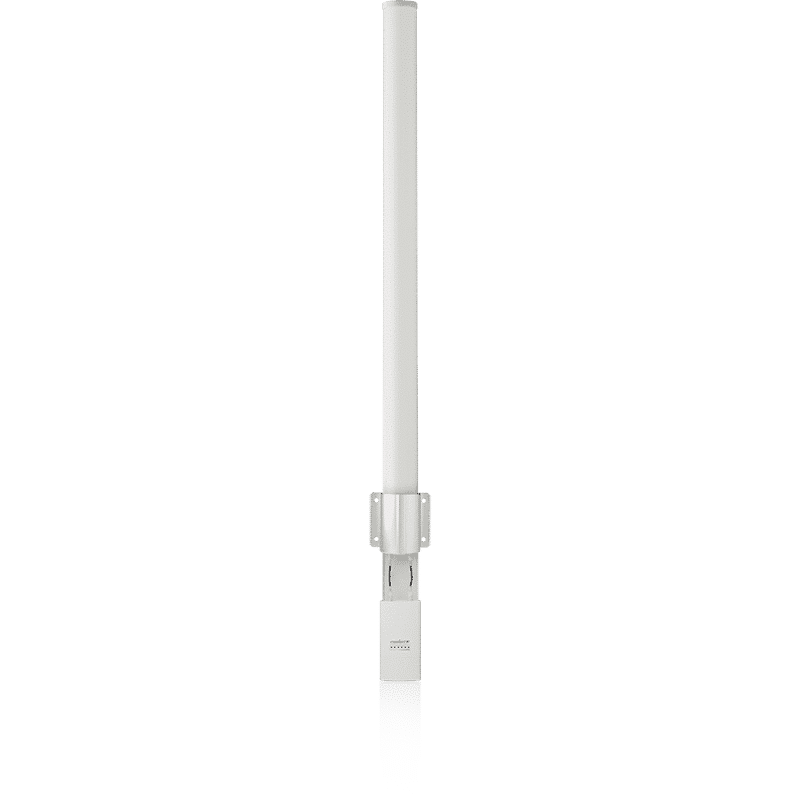

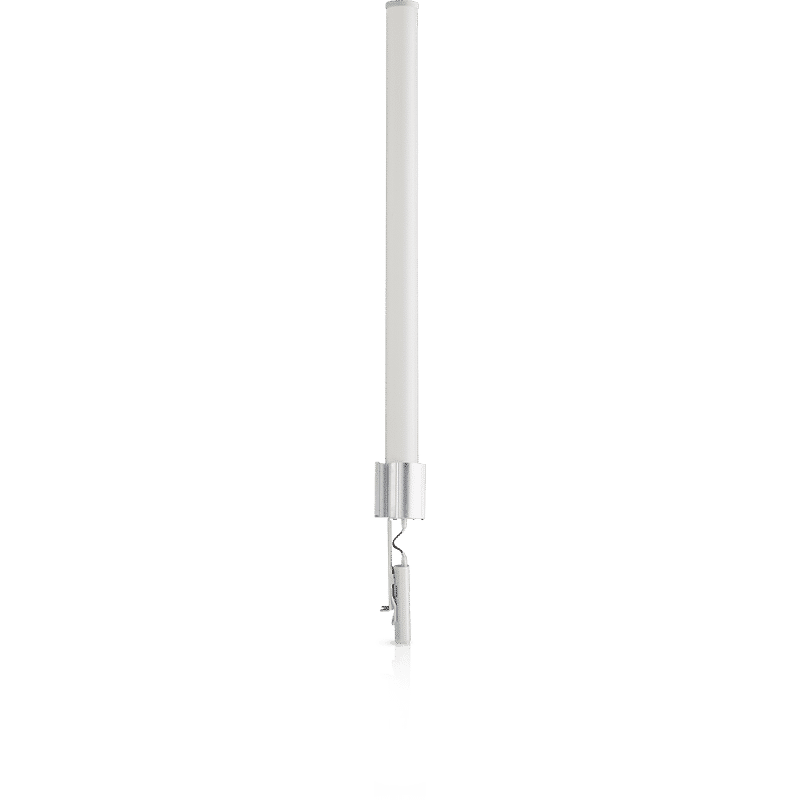

ย 2.4 GHz, 13 dBi carrier-class 2×2 MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios.
2×2 dual-polarity MIMO
360ยฐ coverage
Easy to assemble
Compatible with RocketPrism
Technical Specifications
AMO-2G13
Dimensions
1390 x 122 x 105 mm (54.2 x 4.8 x 4.1″)
Weight
2.4 kg (5.3 lb)
Frequency Range
2.35 – 2.55 GHz
Gain
13 dBi
Elevation Beamwidth
7ยฐ
Max. VSWR
1.7:1
Downtilt
2ยฐ
Wind Survivability
200 km/h (125 mph)
Wind Loading
71.2 N @ 160 km/h (16 lbf @ 100 mph)
Polarization
Dual-Linear
Cross-pol Isolation
25 dB min.
ETSI Specification
EN 302 326 DN2 E
Mounting
Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
