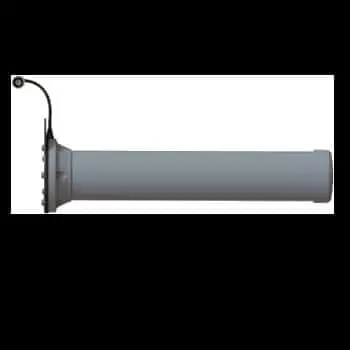

Poynting A-HELI-0031-V2-01-R Wideband 5G/LTE/WiFi Tunnel Antenna – Right Circulating – Gray
Overview
The HELI-31 is part of a series of MiniHELI antennas. These antennas are only mini compared to their bigger brothers, making them antennas ideal for mine tunnels where IoT/M2M connectivity is used, and can also be used for coverage in the tunnels. The HELI-31 is an ultra-wideband antenna that radiates in one direction (i.e. unidirectional), making it ideal for coverage from 1700-7200 MHz. These antennas are typically used for the deployment of IoT in tunnels to enable telemetry and mine automation. This broadband helical antenna propagates around tunnel curves in a non-line-of-sight scenario and provides immunity to many signal-jamming interfering objects such as trains and drilling machines that appear to obscure the tunnel.
Properties
- Ultra-wideband antenna from 1700 – 7200 MHz.
- Peak gain of 9.5 dBi over the 1700 – 7200 MHz range.
- Proven antenna performance for maximum range.
- Unidirectional – radiates in one direction only.
- Left and right circular polarized available (for MIMO).
- Intrinsically safe version available on request.
Areas of application
- Addition of fiber/cable networks “hotspots” in areas to improve mobility or extend networks to inaccessible inaccessible areas such as mines and tunnels.
- Underground telemetry.
- Construction of complete underground, tunnel-wide data networks and Internet/LTE and Wi-Fi connectivity.
- Seamless connection to staff via cell phones
- and smart devices and tablets
Technical data
- Frequency bands: 1700 – 7200 MHz
- Gain (max): 9.5 dBi
- VSWR: <1.75:1
- Over 90% of the volume
- Load capacity of the power supply: 30 W
- Input impedance: 50 Ohm (nominal)
- Polarization: Circular polarized
- Coaxial cable loss:
- 0.71 dB/m at 1800 MHz
- 0.86 dB/m at 2400 MHz
- 1.0 dB/m at 3000 MHz
- 2.10 dB/m at 5800 MHz
- DC short circuit: N/A
- Wind survival rate: <120 km/h
- Temperature range (operation): -40°C to +70°C
- Ambient conditions: Outdoor/indoor
- Type of protection/standard for water ingress: IP 65
- Salt spray: MIL-STD 810F/ASTM B117
- Relative humidity during operation: Up to 98%
- Humidity during storage: 5% to 95% – non-condensing
- Storage temperature: -40°C to +70°C
- Flammability class of the housing: UL 94-HB
- Impact resistance: IK 08
- Product safety & Environment:
- Complies with CE and RoHS standards
- Product dimensions 411 mm x 142 mm x 114 mm
- Packed dimensions: 450 mm x 165 mm x 140 mm
- Weight: 1.20 kg
- Weight of the packaging: 1.6 kg
- Material of the radome: ABS AND PVC
- Housing color: Grey
- Mounting type: Mounted on the ceiling
